Calculite 4.5 Inch Square 0-10 LED New Construction Housing
Calculite 4.5 Inch Square 0-10 Dim New Construction 20 Watt 120 Volt LED Housing. Accommodates mounting to virtually any ceiling system using pre-installed mounting bars. Alignment holes and markings allow fixture to be preset prior to installation. Rotating plate allows for 360 degree adjustment during installation prior to connection of power supply to trim. Telescoping locking bars extend to 30 inches and lock securely into position. Includes 0-10 LED power supply dimmable with a 0-10 dimmer. Input Voltage: 120V. Input Power: 20 Watts. Input Frequency: 50/60Hz. LED Driver: 350mA. Input Current: 0.167. 50,000 hour average lamp life at 70 percent lumen maintenance. Overload and short circuit protected. UL listed. Suitable for wet locations. Dimensions: 20 inch length x 10.75 inch width x 5.75 inch height. 5 3/8 inch square cut out. A complete fixture consists of a housing, light engine and trim kit.
|Width||Lamp||Stock||List Price||Our Price|
|Calculite 4.5 Inch Square 0-10 LED New Construction Housing|

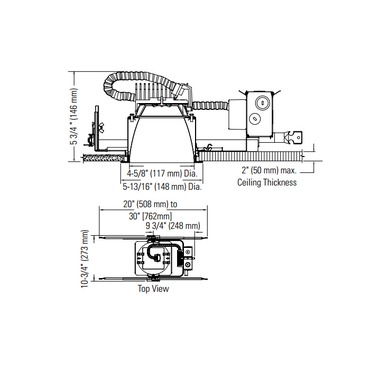

|Dimensions: 20"L x 5.75"H x 10.75"W|
|Lamp Source: LED|
|Bulb: 1 x LED/20W/120V LED|
Bulb not included
|Ceiling Type: Drywall with Trim|
|Housing Type: New Construction NON IC|
|Housing Height: 6"|
|Aperture Shape: Square|
|Aperture Size: 0.000"|
Download Specification Sheet
UL, Wet location
Lightolier is a company with a rich history of growth and innovation. Lightolier was founded in 1904, in the early days of electric lighting. By the Second World War, Lightolier had built a reputation for design leadership in decorative lighting. After the war, the company entered the architectural lighting market in a major way. Rapidly, Lightolier earned recognition for its sophisticated and sensitive designs. With its introduction of track lighting in the 1960's, the company became an important player in the fast growing store lighting market. Also in the 1960's the company began asserting its expertise in downlighting reflector technology. Lightolier figured importantly in the use of downlights in residential, as well as hospitality and entertainment spaces. In the 1970's, Lightolier pioneered high-performance fluorescent lighting and lighting systems for stores and office work spaces. In 1986, Lightolier created the first digital dimmer and entered the lighting controls market; energy controls followed in 1991. Throughout the 1990's, Lightolier has concentrated on Energy Smart lighting. Currently, Lightolier actively supports the development and adoption of good lighting.
