Element 3IN SQ Flangeless Low-Profile Downlight Housing ID: E3SLF-LOWD6DS
Add To Cart
Element 3IN SQ Flangeless Low-Profile Downlight Housing 0 Recessed Lighting Visual Comfort Architectural

Element 3IN SQ Flangeless Low-Profile Downlight Housing

By Visual Comfort Architectural

LOADING PRODUCT DATA . . .
Element 3IN SQ Flangeless Low-Profile Downlight Housing - Black Powder Coat
Element 3IN SQ Flangeless Low-Profile Downlight Housing - Black Powder Coat

Share with friends:

Element 3IN SQ Flangeless Low-Profile Downlight Housing

By Visual Comfort Architectural

$360.00 - $502.00

COLOR TEMP:
3000K Warm Dim Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

WATTAGE:
12W

BEAM ANGLE:
60°

Housing:
IC Airtight Housing

Free Shipping Icon

Usually leaves warehouse in 6-8 days

Based upon stock availability.

Accessories Not Included. See accessories here.

$450.00

+ FREE SHIPPING

SPEC #: ELE946878 | ID: E3SLF-LOWD6DS

  • Product Details
  • Specification Sheet / Technical Files
  • Shipping & Returns
    • Free ground shipping
    • Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
    • Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
    • Please note that processing times posted on our website are in addition to shipping times.
    • Read Shipping Policy
    • Return Options
    • Product is Returnable within 60 days with no restocking fee, return shipping fee applies. Product must be new and uninstalled with all original packaging.
    • Read Return Policy
Design Services See Design Services
Help Icon Questions About This Product?
Product Rendering Icon Request Room Rendering

Element 3IN SQ Flangeless Low-Profile Downlight Housing

SPEC #: ELE946878

ID: E3SLF-LOWD6DS

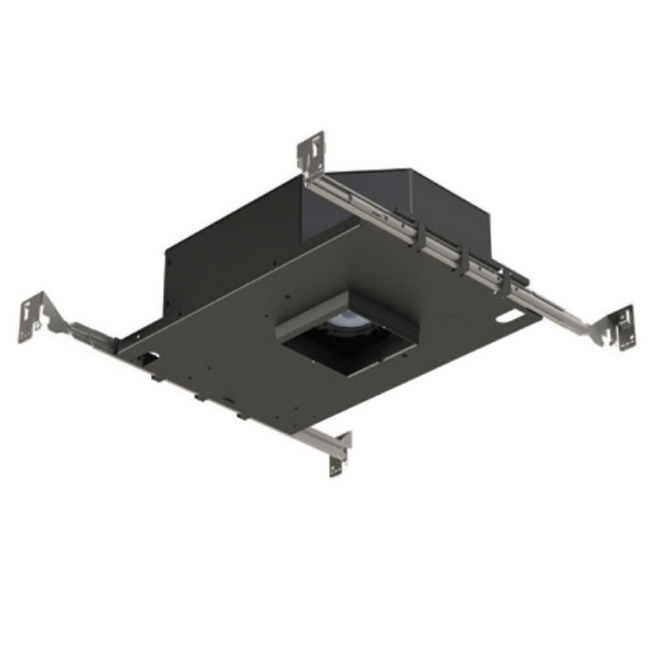

3 Inch Square 90CRI Flangeless Fixed Downlight Low Profile IC Airtight, or Chicago Plenum New Construction Housing for square flangeless trims. Small aperture LED downlight with architectural appearance.

Includes a 12 or 17 watt LED module in three color temperature options and Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.

Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.

Note: Warm Dim option is not available with 10 degree beam angle.

Available Options

Finish: Black Powder Coat

Specifications

    • Finish: Black Powder Coat
    • Housing: IC Airtight Housing
    • Size: 12"L x 7"W x 3.4"H
    • Shipping Weight: 9.00 lbs
    • Dimmer: Low Voltage Electronic
    • Materials: Steel
    • Function: Downlight
    • Ceiling Type: Drywall Trimless/Flush
    • Housing Type: New construction IC Airtight
    • Housing Height: 3.5"
    • Aperture Shape: Square
    • Lamp Source: LED
    • Bulb:
      1 x LED/12W/120-277V LED
      Integrated LED module
    • Total Wattage: 12 watts
    • Lamp Color: 3000K Warm Dim
    • Color Rendering: 90 CRI
    • Delivered Lumens: 900 lumens
    • Lumens/Watt: 75.00
    • Beam Angle: 60°
    • Lamp Life: 50000 hours
    • ETL

      ETL

    • Damp Location

      Damp Location

    • Airtight

      Airtight

    • Title 24 (JA8)

      Title 24 (JA8)

    • Warm Dim LED

      Warm Dim LED

      • Specification Sheet / Technical Files

      Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
      Brand Logo

      The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
